Fractura del cono de unión del Cono Morse en la artroplastia de revisión de la cadera

Abstract

Since the mid-1980s, there has been a dramatic increase in the use of modular THA designs. Surgeons adopted head-neck modularity for the intraoperative advantages of adjusting leg length and femoral offset and neck-stem modularity for the opportunity to further fine-tune hip biomechanics and femoral anteversion. Fretting, crevice and galvanic corrosion, component loosening, and mismatch have all been associated with the use of modular prostheses in primary and revision hip arthroplasty. Dissociation and fracture of modular femoral neck prosthesis are rare and underestimated complications in modular THA. We report the first case of a fracture of the cone of the morse taper junction of a MRP Titan revision stem.

Introduction

Since the mid-1980s, there has been a dramatic increase in the use of modular THA designs. Recently, dual modular stems have been introduced that include an additional neck-stem taper junction. Surgeons adopted head-neck modularity for the intraoperative advantages of adjusting leg length and femoral offset and neck-stem modularity for the opportunity to further fine-tune hip biomechanics and femoral anteversion. Modularity may also provide intraoperative flexibility when partial hip implant revision is required [1-3]. However, increasing modularity also renders several postulated disadvantages that must be taken into consideration.
Fretting, crevice and galvanic corrosion, component loosening, and mismatch have all been associated with the use of modular prostheses in primary and revision hip arthroplasty [4-8]. Dissociation and fracture of modular femoral neck prosthesis are rare and underestimated complications in modular THA [2,4,10-15]. In several publications the MRP Titan revision stem has proven to be a reliable implant in revision surgery of the hip joint [2,3,16]. To our knowledge we report the first case of a fracture of the cone of the morse taper junction of a MRP Titan revision stem 3 years after index operation of a 49 years old male patient.

Case Report

In August 2013 THA was performed due to a girdlestone situation after septic osteoarthritis of the hip (Figure 1) in a 46 year old male patient using a MRP Titan revision stem (Diameter: 18mm, length: 140 mm) (Peter Brehm GmbH, Weisendorf, Germany) and a cementless cup (Allofit - IT; Diameter 54 mm, Zimmer, Warsaw, USA) and a ceramic on ceramic bearing (head diameter: 36 mm) (Figure 2). The patient was 175 cm tall and weighed 105 kg (body mass index: 34.3 Kg/ m2). 2 weeks later revision surgery due to recurrent dislocation (Figure 3) was performed. Revision of the acetabular component was done using an Allofit - Classic- cup, Diameter 56 mm (Zimmer, Warsaw, USA)). The neck component was exchanged from small to medium size (Figure 4). A ceramic on PE bearing was implanted (head diameter: 32 mm). Postoperative healing was uneventful. The patient was out of any complaints. In February 2016 the patient started suffering from slight thigh pain but detected crepitation in the region of the left hip. X-ray of the left hip in 2 planes in May 2016 revealed an asymmetrically gap of the stem / neck junction (Figure 5). During revision surgery of the left hip breakage of the cone of the morse taper junction was visible (Figure 6). Removal of the well-fixed stem was performed via a distal fenestration. After fixation with cerclage wires a bended MRP Titan revision stem (Diameter: 19 mm, Length: 200mm with long neck and extension sleeve) was implanted using a 32 mm ceramic head (Figure 7). Postoperative healing was uneventful.
Light microscopy and field emission scanning electron microscopy (SEM, LEO 1525) was used for analyzing the broken cone. The fracture of the male cone showed typical secondary damage features attributed to handling, especially manipulation during explanation procedure. These never avoidable deteriorations hindered the possibility of analyzing the very starting point of the fracture. Additionally, hinderness was the fact that the overweight patient walked about 3 months with the broken cone. Globally the fracture is of a typical fatigue type, starting surprisingly deep inside the cone contact surfaces. To reveal specific features of the contact area at the crack initiation site we opened the distal part of the component exact axially in order to prepare carefully out the male cone residue. Light microscopy and field emission scanning electron microscopy revealed fretting and crevice corrosion and fatigue crack (Figure 8-10). There were no signs of design or material flaws.

Figure 1. X-ray of the left hip in 2 planes: ap view a. and lateral; b. view shows a girdlestone situation following septic arthritis of the left hip with staph. aureus.

Figure 2. X - ray of the left hip in 2 planes: ap view a. and lateral; b. view shows THA using a MRP Titan revision stem with a short neck and a cementless cup.

Figure 3. X - ray of the left hip (ap view) shows dislocation of the left hip.

Figure 4. X - ray of the left hip in 2 planes: ap view a. and lateral; b view shows status after revision of THA using a long varus neck and a cementless cup.

Figure 5. X - ray of the left hip in 2 planes: ap view a. and lateral; b. of the left hip reveals an asymmetrically gap of the stem / neck junction and radiolucent lines in zone 1,7,8, and 14 according to Gruen.

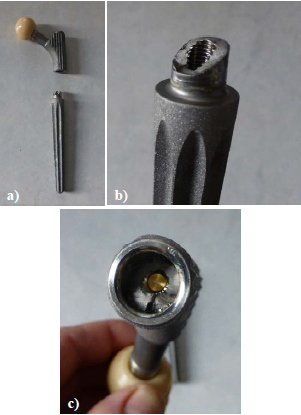

Figure 6. a and b showing the broken cone of the morse taper junction; c. view into the female part of the morse taper junction showing the broken cone and broken golden expansion screw.

Figure 7. X - ray of the left hip in 2 planes: ap view a. and lateral; b. view shows revision arthroplasty of the hip using a long bended MRP Titan revision stem with long neck and extension sleeve.

Discussion

Modular THAs incorporating a double-taper (neck-head and neck-stem) design are a recent innovation in hip arthroplasty and have distinct advantages compared to single neck-head taper or monolithic designs. Intraoperative flexibility is clearly increased by using a modular-neck device. Clinical advantages of modular necks include the adjustment of leg length and offset via the head-neck taper, femoral anteversion via the neck-stem taper, easier revision when there is no clinical need to revise a well-fixed stem, and optimal restoration of soft tissue tension and patient biomechanics [1-3]. Despite the recent popularity of increasing modularity, there is a paucity of studies that have been published reporting modular femoral neck failure [4,13- 15,17]. In the reported case of Dangles et al. [9] -who reported the first modular femoral neck fracture in an obese, active man - potential design flaws were discussed for implant failure. To date, most reported fatigue fractures of modular stems have been associated with titanium (Ti6Al4V) alloy neck and stem components [4]. Dunbar et al. [18] postulated an implant neck fracture rate of 1.4% in Ti modular-neck prostheses. Skendzel et al. [13] presented 2 cases of modular prosthesis fracture. They discussed that the combination of patient obesity with a long modular neck may have contributed to modular neck fracture. Specifically, the use of a long varus neck increases the bending moment by 32.7% compared with the standard “short varus” neck, with increasing stress concentration at the modular junction [4, 13]. There are examples of fracture in the modular neck of modern hip implants.

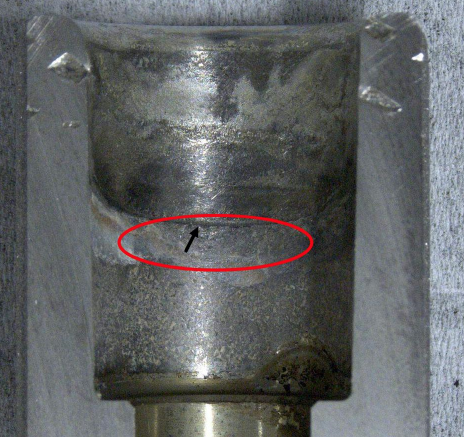

Figure 8. Insight of the female component: Border line of the crack path. Below the crack initiation site the contact cone surfaces show massive fretting and fretting oxidation (O).

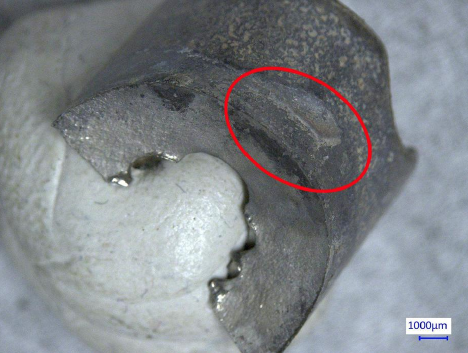

Figure 9. At the male cone the fretting features are also clearly visible (O). The surface below the contact fretting pattern additionally shows features of crevice corrosion.

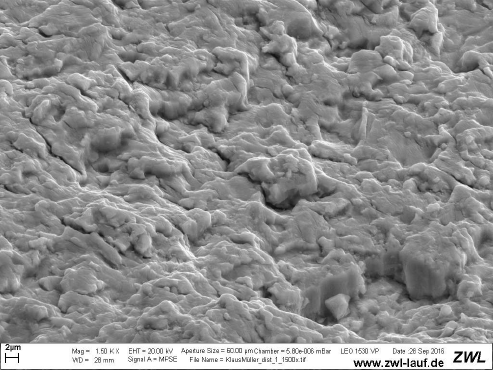

Figure 10. The crack surface itself reveals striations with very narrow distance, typical of a fatigue crack propagation with low velocity over a long period.

Most prominently reported is the Profemur-Z (Wright Medical Technology, Arlington, Tennessee), which in the Australian market has shown an unacceptably high failure rate of 11.2% at the modular stem-body tapered junction [19]. On a microscopic level, micromotion at the junctional interface induces both fretting and crevice corrosion, theoretically contributing to the creation of microcracks within the zone of corrosion and increasing the risk of dynamic fatigue fracture. Both titanium and cobalt chrome alloys form a protective oxide layer that aids in resisting corrosion, termed self-passivation. With increased stresses on the implants, particularly at modular head/neck and neck/ stem junctions, these oxide layers are disrupted, leading to a vicious cycle with recurrent attempts of the metal to repassivate their surface, subsequently depleting the available oxygen supply, releasing chloride ions within the joint and lowering the local pH. This creates an anaerobic and acidic environment more susceptible to further abrasive wear and corrosion, potentiating the risk of component fracture over time [4]. Ti-based devices have higher corrosion breakdown potentials than Co- Cr-Mo devices [1]. The combination of corrosion, large femoral head components with long modular necks, metal-on-metal components, patient obesity, and activity level may create a local microenvironment that can initiate and perpetuate fatigue failure. In the case of Ellmann [4] the combination of these factors led to the “perfect storm” for fretting, corrosion, and failure. Increased stress over a long lever arm creates an environment susceptible to modular component fracture/failure. Kop et al. [1] found the severity of corrosion was greater at the neck-stem junction than at the head-neck junction. This is not unexpected as the forces at the head-neck junction are transferred through a spherical bearing resulting in relatively low contact stresses, whereas there is eccentric loading at the neck-stem junction and depending on the offset and length of the neck, these stresses can be very high. A recent study of S-ROM1 THAs revealed that 27% of retrieved devices could not be disassociated in theatre due to cold welding. This may prevent the production of metallic debris, but a key design feature of these devices -partial replacement in revision surgery- failed [1]. Lakstein et al. [20] analysed six patients with a fracture at the mid-stem junction of a modular revision hip implant They concluded that the stem failure was initiated by a fretting fatigue mechanism and was propagated by a pure bending fatigue mechanism. Risk factors for fractures of the modular junction include excessive body weight and inadequate proximal osseous support because of trochanteric osteotomy, reduced preoperative bone stock, osteolysis, loosening, and/or implant under sizing. Surgeons should consider the use of implants with strengthened junctions when using modular stems in such patients. A lot of research has been done to minimize corrosion using shot peening procedures [2,3] or deep rolling [16] to induce compressive residual stresses to the male part of the morse taper junction. The contamination of the morse taper junction with body liquid can enhance corrosion in the junction gap as well as fatigue through stress corrosion cracking [16]. In our case there were no signs of design or material flaws of the cone or surgical flaws. Maybe the fracture of the cone was a product of the “perfect storm” according to Ellmann et al. [4].

Conclusion

We follow Ellmann et al. [4] that with increasing use of modularity, fracture of the modular neck is a real but rare and likely underreported concern in THA. Surgeons must be aware of its potential complications and plan accordingly. Long varus modular necks in obese patients seem to be important risk factors for neck fracture in modular femoral stems.

Compliance with ethical standards

Conflict of Interest: The authors declare that they have no conflict of interest.
Funding: There is no funding source.
Ethical approval: This article does not contain any studies with human participants or animals performed by any of the authors.
